Optimate 12V Panelmount socket kit - Weatherproof AUTO socket with SAE connection cable

Beskrivning

Optimate 12V Panelmount socket kit- Weatherproof AUTO socket with SAE connection cable

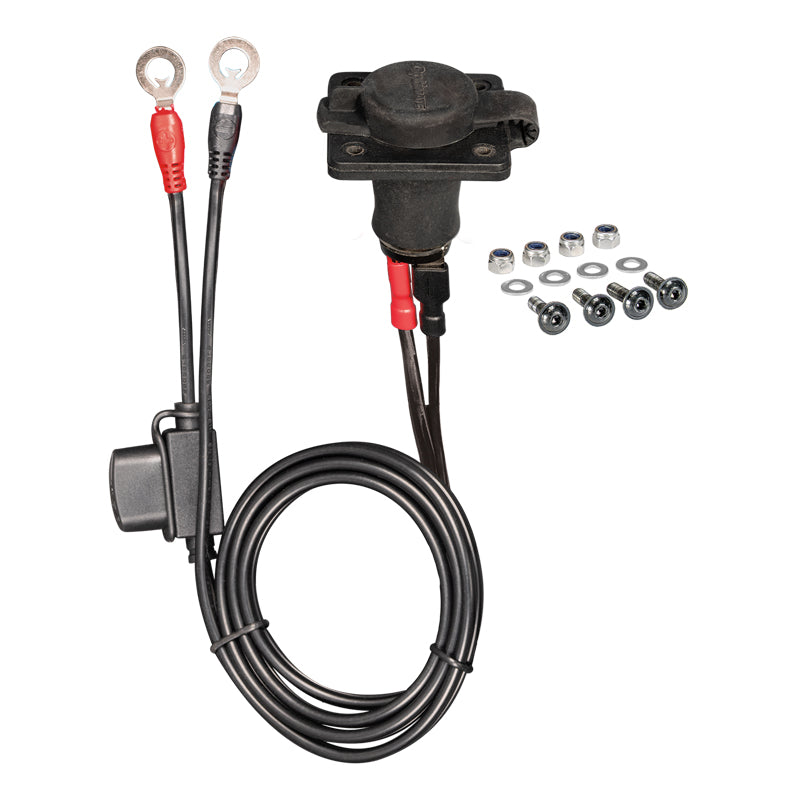

The OptiMate O‑46KIT provides a complete, ready-to-install solution for adding an external 12V power and charging port to work trucks, trailers, RVs/caravans, industrial machines, motorcycles, ATVs, and UTVs. – This kit includes the O‑46 weatherproof panel-mount socket and the O‑22 SAE connection cable.

Universal / standard 12V socket (Ø21mm / 13/16”) with locking blades that latches onto a suitable plug (O-02 / O-22) – guarantees a reliable vibration resistant connection.

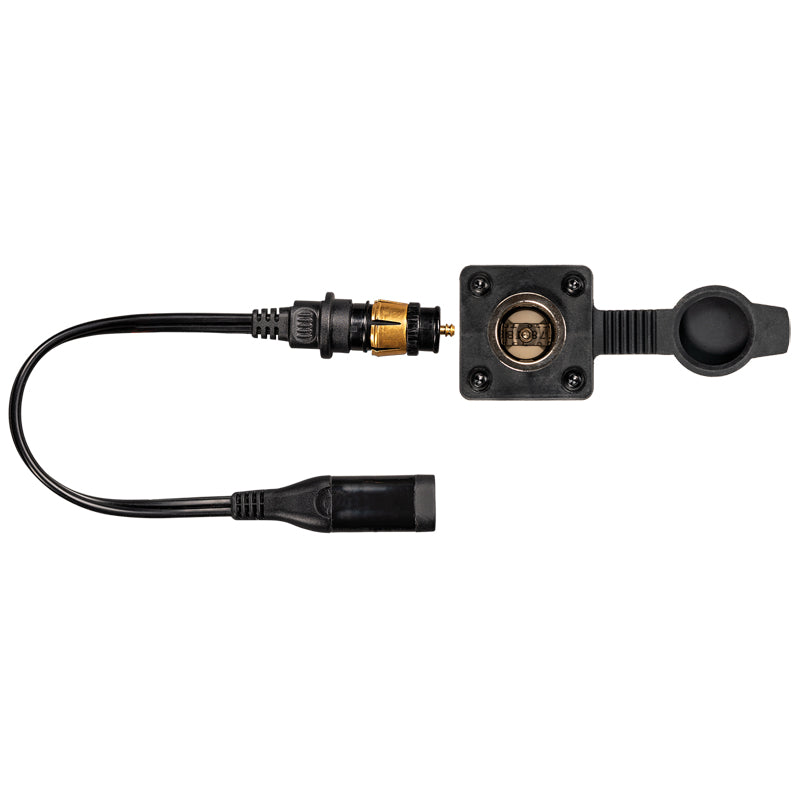

Includes OptiMate O-22 adapter cable – provides a reliable SAE-to-AUTO plug connection for standard Ø21–22 mm 12V automotive sockets.

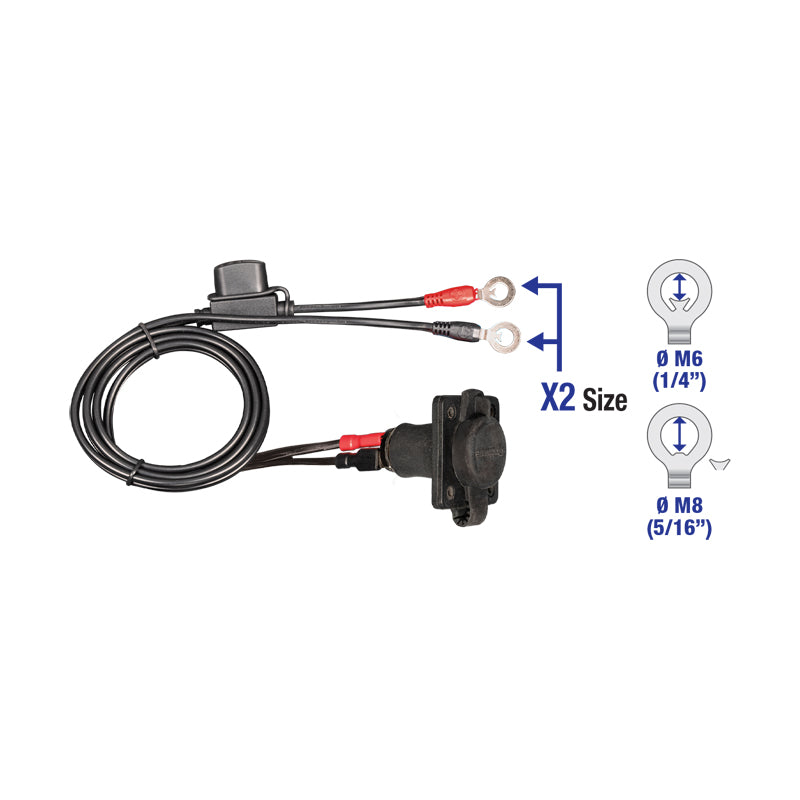

Fused battery connection cable with size adaptable ring terminal – default M6 (1/4”) adaptable to M8 (5/16”) provides flexible installation options.

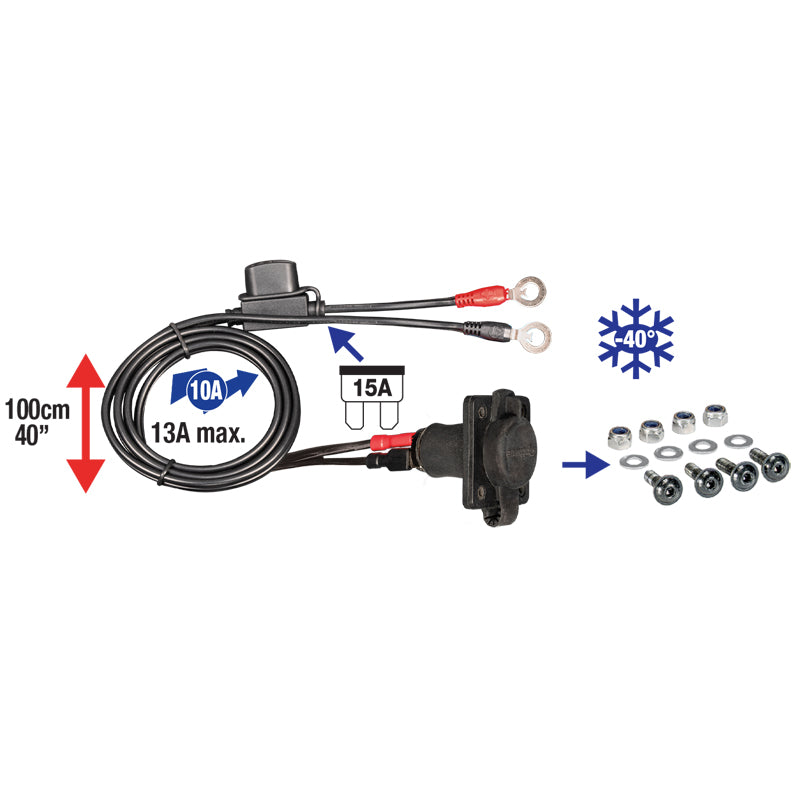

Premium specifications – 100cm (40”) length, 15A fuse, -40° rated cable, 10A (13A max) current rating, panel mount.

O‑46 Weatherproof Panel-Mount Socket

LENGTH: 40″/100cm

CONNECTORS: 12V auto socket to 1/4″ (M6) / 5/16” (M8) ringlets

CABLE RATING: 16AWG (1.32mm2) SPT2-W

FUSE: 15A

USE: -40°C/-40°F low temperature use

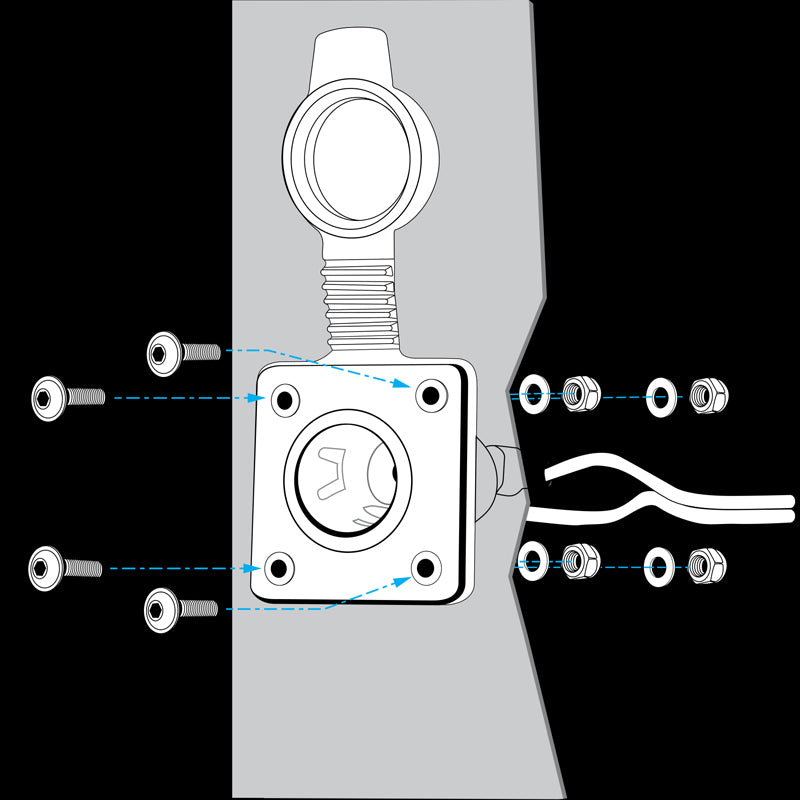

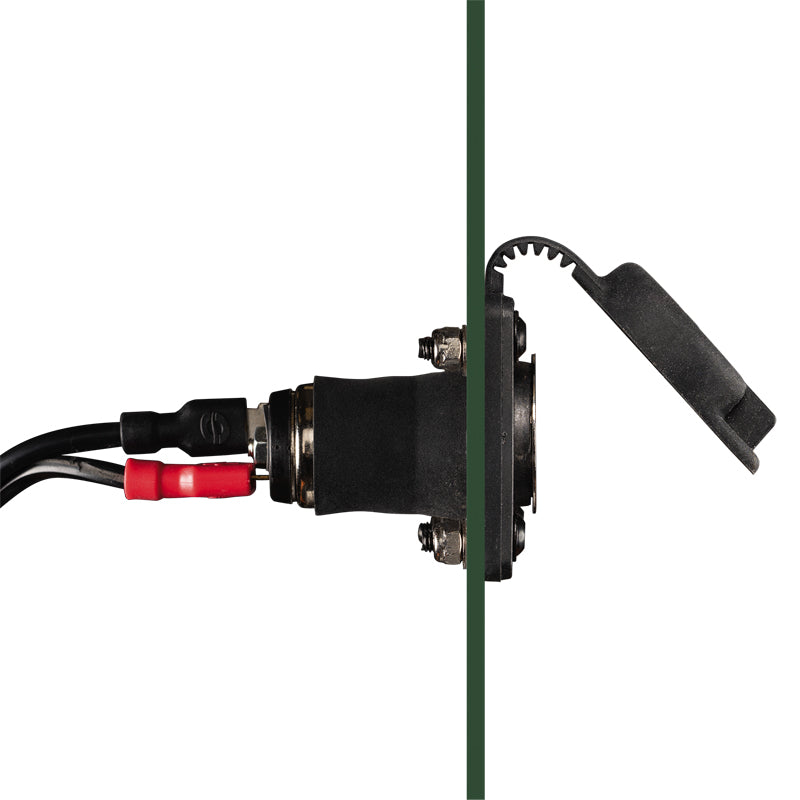

STYLE: Panel mount with sealing cap.

WARRANTY: 3-year limited replacement warranty

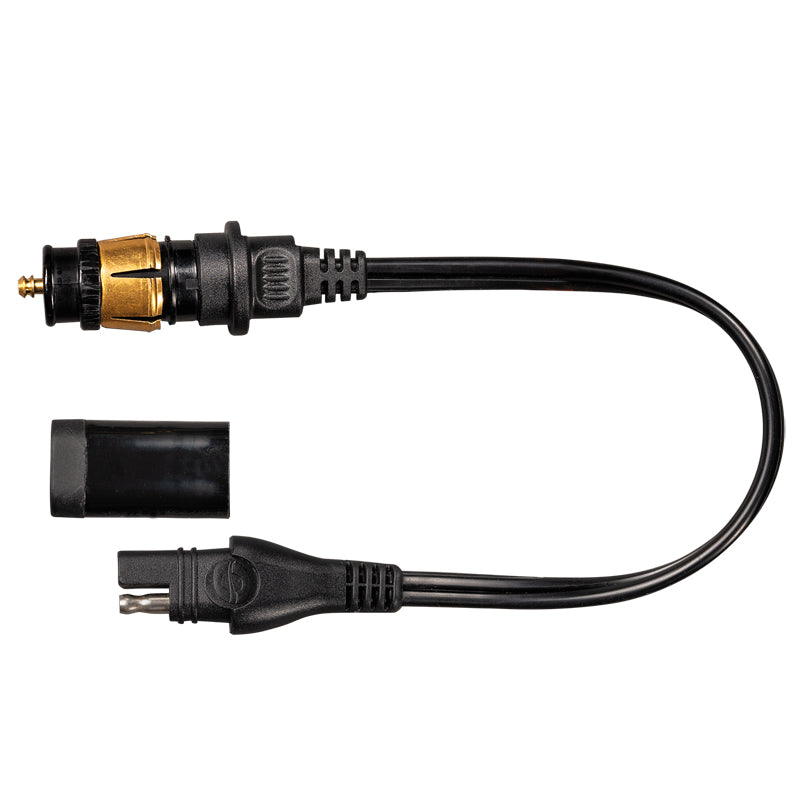

O‑22 SAE Connection Cable (Included)

LENGTH: 12″ / 30cm

CONNECTORS: Ø21–22mm AUTO Plug to OptiMate heavy-duty SAE (standard 2-pin)

CABLE RATING: All-weather, heavy-duty cable

FUSE: Integrated fuse inside connector

USE: Reliable, vibration-resistant power delivery for 12V automotive and motorcycle applications

STYLE: Latching plug with 360° flared negative ring for secure contact inside socket

WARRANTY: 3-year limited replacement warranty

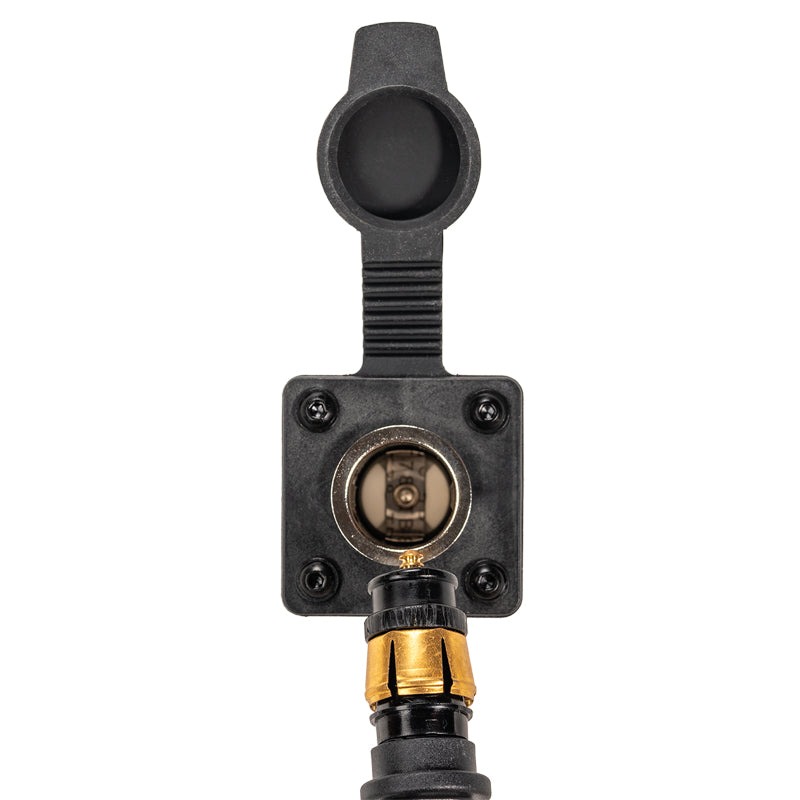

Sealing cap
Plug locking blades
Rated to -40°C/-40°F
Current rating: 10A average/ 13A max.
